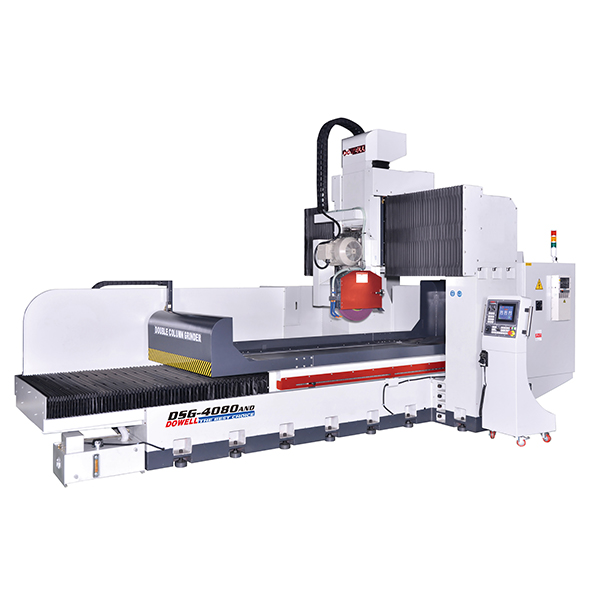

Double Column Precision Surface Grinding Machine : DSG-4080AND

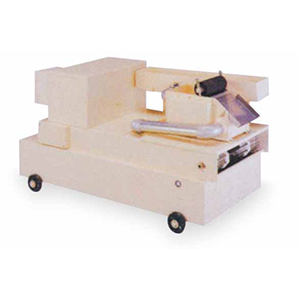

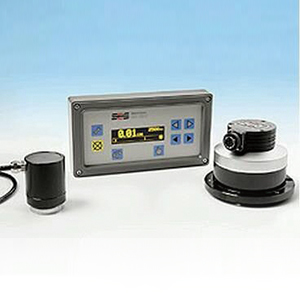

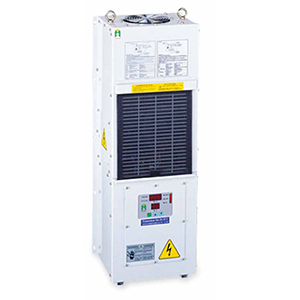

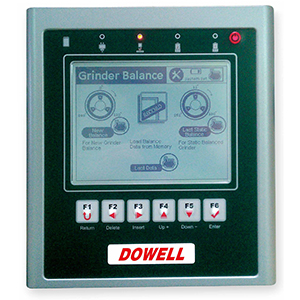

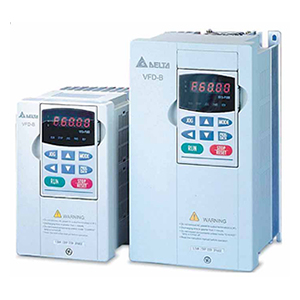

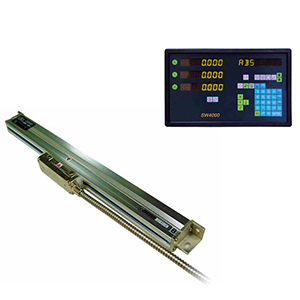

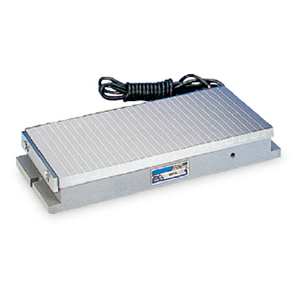

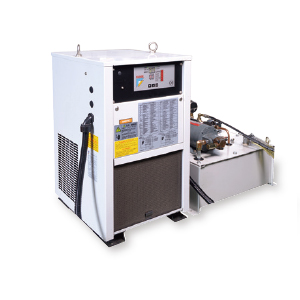

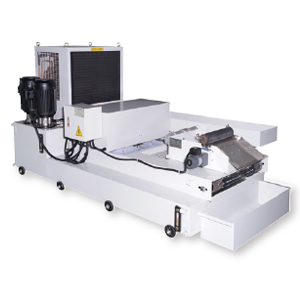

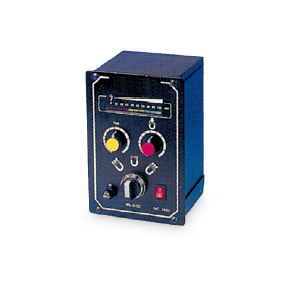

SPECIFICATION OPTIONAL ACCESSORIES

DESCRIPTION	UNIT	DSG-4080AND
Table size (lxw)	mm	1000x2000
Max.grinding length	mm	2000
Max.grinding width	mm	1000
Distance from table to spindle center (Horizontal)	mm	920, opt. 1120
Distance from table to spindle center (Vertical) Opt.	mm	750, opt.950
Table speed	m/min	2~25
Table guide way	-	V and V way
Distance between two column	mm	1400
Continuous cross feed	m/min	1200
Auto cross feed increment	mm	5~30
Cross hand feed per revolution	mm	x1, x10, x100 (MPG) / 0.1, 1, 10
Cross hand feed per graduation	mm	x1, x10, x100 (MPG) / 0.001, 0.01, 0.1
Vertical hand feed per revolution	mm	x1, x10, x100 (MPG) / 0.1, 1, 10
Vertical hand feed per graduation	mm	x1, x10, x100 (MPG) / 0.001, 0.01, 0.1
Vertical rapid traverse	mm/min	1200
Spindle motor (Horizontal)	HP	20
Spindle motor (Vertical )Opt.	HP	Std. 7.5 Opt. 10
Vertical feed motor	-	1KW Servo motor
Cross feed motor	-	1KW Servo motor
Hydraulic motor	HP	10
Grind wheel DxWxB (Horizontal)	mm	Std. 500x50x203 Opt. 500x75x203
Grind wheel DxWXB (Vertical)Opt.	mm	300x38x127
Table loading	kg	2500
Machine weight	kg	17500
Machine dimensiors (LxWxH)	m	7.2x3.5x3.5

※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.

SURFACE GRINDER
