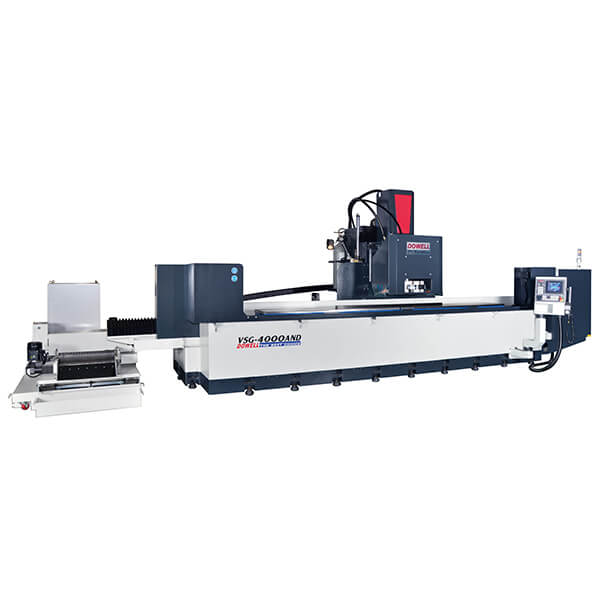

FEATURED PRODUCTS : VSG-4000 Vertical Long Table Surface Grinder

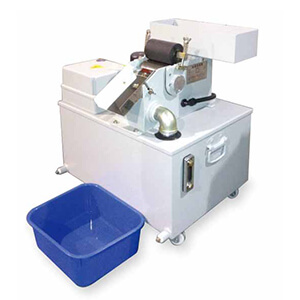

FEATURES SPECIFICATION OPTIONAL ACCESSORIES MAIN PROCESSING ITEM

Vertical feeding use high stiffness box ways、precisely scraped，and Ø50mm ball screw.

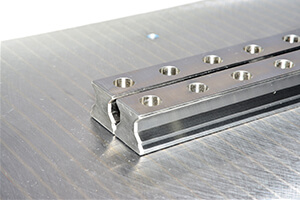

X axis use high stiffness and rigidity linear roller guideway(RG65) and block x6.

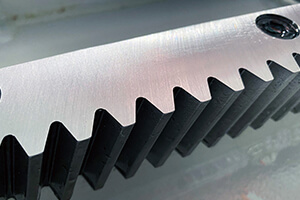

X axis use high precision rack and pinion system for high rapid and smooth movement.

DESCRIPTION		UNIT	VSG-1500	VSG-2000	VSG-2500	VSG-3000	VSG-4000
General Capacity	Table size (L x W)	mm	300x1500	300x2000	300x2500	300x3000	300x4000
General Capacity	Distance from table surface to spindle center	mm	250mm	250mm	250mm	250mm	300mm
Longitudinal Movement	Servo motor feed(table speed)approx(Opt.)	M	0~20	0~20	0~20	0~20	0~15
Vertical Downfeed	Increment cross feed	m/min	500	500	500	500	500
Vertical Downfeed	M.P.G	-	x1:0.001mm，x5:0.005mm， x10:0.01mm，x50:0.05mm	x1:0.001mm，x5:0.005mm， x10:0.01mm，x50:0.05mm	x1:0.001mm，x5:0.005mm， x10:0.01mm，x50:0.05mm	x1:0.001mm，x5:0.005mm， x10:0.01mm，x50:0.05mm	x1:0.001mm，x5:0.005mm， x10:0.01mm，x50:0.05mm
Grinding Wheel	Wheel size (Dia x Width x Bore)	mm	140x50x25	140x50x25	140x50x25	140x50x25	160x(90x80)x30
Grinding Wheel	Spindle speed(50/60HZ)	rpm	0~1200	0~1200	0~1200	0~1200	0~800
Motor	Spindle motor	HP	25	25	25	25	50
	Y servo motor	kw	2	2	2	2	3
	X servo motor(Opt.)	kw	1.5	1.5	1.5	1.5	3
Weight	Net Weight / Gross Weight(approx.)	kg	7500/8500	8500/9500	8500/10500	8500/11500	22000/24500
Packing size	Length x Width x Height	mm	500 x 228 x 228	550 x 228 x 228	590 x 228 x 228	650 x 228 x 228	1000 x 228 x 228

※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.
