ROTARY SURFACE GRINDER

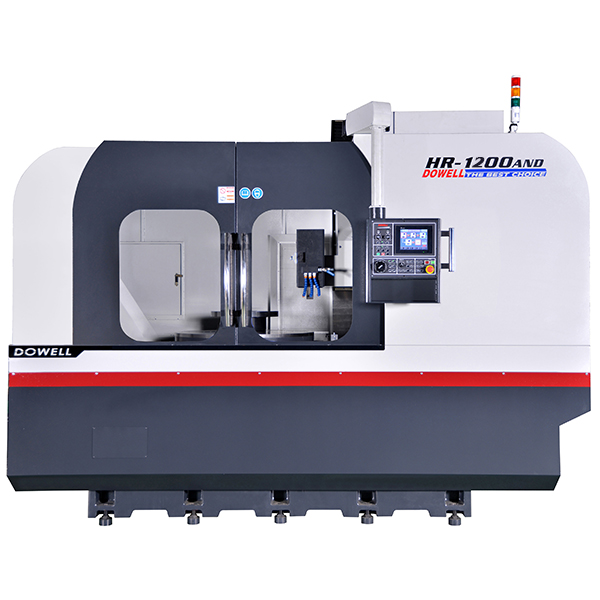

HR-1200AND HORIZONTAL ROTARY SURFACE GRINDER
HR-1200AND
| DESCRIPTION | UNIT | HR-1200AND |
|---|---|---|
| Rotary magnetic chuck dia. | mm | 1200 |
| Maxi grinding radius | mm | 625 |
| Distance of table surface to spindle surface center | mm | 700 |
| Rotary magnetic chuck speed | r.p.m. | 10~50 |
| Rotary magnetic chuck horse power | kw | 10 |
| Spindle motor | HP | SIEMENS, V3, 20HP |
| Spindle speed (50/60Hz) | r.p.m. | 1450/1750 |
| Auto downfeed horse power | kw | 1.5 |
| Vertical hand wheel downfeed per revolution | MPG/mm | x1, x5, x10 / 0.1, 0.5, 1 |
| Vertical hand wheel downfeed per graduation | MPG/mm | x1, x5, x10 / 0.001, 0.005, 0.01 |
| Wheel size (dia x width x bore) | mm | 510x50x203.2 |
| Net weight / gross weight (approx) | kg | 14000/15500 |
| Packing size (LxWxH) | mm | 5300x3150x3200 |
※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.
- Precision bearings
- Hydraulic components
- Precision knife
- Automotive components
- Other Precision pars
- Meehanite Class FC30 casting with slide way provides high stiffness and wear resistance maintaining the accuracy of the machine.
- Spindle lateral design creates stability during heavy cutting.
- Vertical feeding uses 2 high stiffness and rigidity linear roller guides,
- 45CA(Blocksx6)/HR-800AND,65CA(Blocksx6)/HR-1000/1200AND allowing smoothly vertical feeding whilst maintaining high stiffness.
- Small workpiece suction is accomplished by fine electrical magnetic chuck.
-
Coolant system -
Magnetic filter -
Auto. paper strip filter with magnetic separator and coolant system -
Oil mist collector -
Demagnetizer -
On line wheel balance system (Manual) -
SBS (Auto) -
Digital readout -
Inverter -
Air-Conditioner
