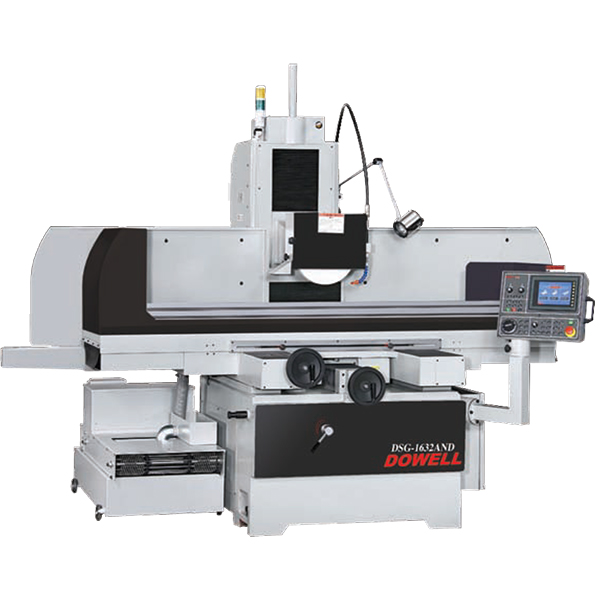

DSG-1632AND : Automatic Surface Grinding Machine

FEATURES SPECIFICATION STANDARD ACCESSORIES OPTIONAL ACCESSORIES

DESCRIPTION		UNIT	DSG-1632AND
General Capacity	Table size (lxw)	mm	400x800
	Max.grinding length	mm	850
	Max.grinding width	mm	450
	Distance from table surface to spindle center	mm	600/800(opt.)
	Standard mag. Chuck size	mm	400x800
Longitudinal Movement	Manual travel	mm	900
	Hydraulic traverse	mm	850
	Hydraulic feed (table speed) approx.	m/min	1~19
Cross Movement	Manual travel	mm	450
	Auto cross feed	mm	420
	Hand feed per revolution	mm	5
	Hand feed per graduation	mm	0.02
	Continuous cross feed (approx.)50/60HZ	mm/min	1100
	Increment cross feed	mm/min	1~20
Vertical Downfeed	Rapid traverse (approx.)	mm/min	800
	Slow traverse (approx.)	mm/min	29
	Hand feed per revolution	mm/MPG	0.1mm/MPG
	Hand feed per graduation	mm/MPG	0.001mm/MPG
	Auto downfeed rate	mm	0.001~0.099
	Jog	mm	0.001
	Pre-set spark out times		0.9(passes)
	Manual pulse generator		x1, x5, x10
Grinding Wheel	Wheel size (diax width xbore)	mm	Ø355x38x127
Grinding Wheel	Spindle speed (50/60HZ)	r.p.m	1450/1750
Motor	Spindle drive motor	HP	7.5
	Hydraulic motor	HP	2
	Cross feed motor	W	80
	Rapid hand elevatipn servo motor	W	400
Weight	Net weight / gross weight (approx.)	kg	3300/3450
Packing Size	Length × width × height	mm	2800x2100x2280

※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.

Machine structure is manufactured from high quality Meehanite class FC cast iron
Spindle motor select high stability Siemens motor
X and Z axis guide way use double V design
Y and Z axis use precision ball screw
Y axis use AC servo motor and go with MPG reach high feeding accuracy
Cross stroke adjusting function get rid of inconvenience of traditional sensor and increase grinding efficiency. All guide way and ball screw use automatic lubrication system for forced cycle lubrication (with alarm for oil detective)
AND control: The operation modes are easy and simple for user to set up auto grinding
