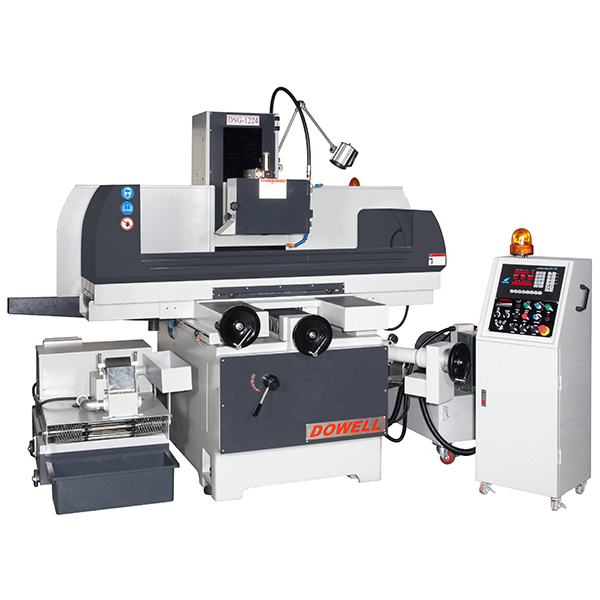

Auto Feed Surface Grinder (DSG-1224CAHD)

FEATURES SPECIFICATION STANDARD ACCESSORIES OPTIONAL ACCESSORIES

DESCRIPTION		UNIT	DSG-1224CAHD
General Capacity	Table size (lxw)	mm	300x600
	Max.grinding length	mm	650
	Max.grinding width	mm	340
	Distance from table surface to spindle center	mm	600/700(opt.)
	Standard mag. Chuck size	mm	300x600
Longitudinal Movement	Manual travel	mm	700
	Hydraulic traverse	mm	650
	Hydraulic feed (table speed) approx.	m/min	1~19
Cross Movement	Manual travel	mm	340
	Auto cross feed	mm	310
	Hand feed per revolution	mm	5
	Hand feed per graduation	mm	0.02
	Continuous cross feed (approx.)50/60HZ	mm/min	1100
	Increment cross feed	mm/min	1~20
Vertical Downfeed	Rapid traverse (approx.)	mm/min	800
	Slow traverse (approx.)	mm/min	29
	Hand feed per revolution	mm	1mm
	Hand feed per graduation	Mm	0.005mm
	Auto downfeed rate	Mm	0.001~0.099
	Jog	mm	0.001
	Pre-set spark out times		0.9(passes)
Grinding Wheel	Wheel size (diax width xbore)	mm	Ø355x38x127
Grinding Wheel	Spindle speed (50/60HZ)	r.p.m	1450/1750
Motor	Spindle drive motor	HP	5/7.5(opt.)
	Hydraulic motor	HP	2
	Cross feed motor	W	80
	Elevating motor	W	80
Weight	Net weight / gross weight (approx.)	kg	2350/2550
Packing Size	Length × width × height	mm	2400x1900x2280

※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.

Machine structure is manufactured from high quality Meehanite class FC cast iron
Spindle motor select high stability Siemens motor
Saddle guide way use double V designed, coated with Turcite-B and hand-scraped provide smooth movement,
Auto lubrication system use pump for forced cycle lubrication
Plunge and surface grinding mode are standard.
Vertical feed driven by step & AC servo motor
Feeding speed selection: JOG/slow/Rapid
